Electrical Terminals Pure Copper
TE0508
FOB
2000 packs
1000,000packs / Day
Yueqing,China
10 daysDay
Material: Copper
Color: Red, Blue, White, Green, Yellow, Grey
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: E02506,E02508,E03406,E03408,E05006,E05008,E05010,E07506,E07508,E07510,E07512,E10006,E10008,E10010,E10012,E15006,E15008,E15010,E15012,E15018,E25008,E25010,E25012,E25018,E40010,E40012,E40018,E60012,E60018,E100012,E100018,E160012,E160018,E250016,E250018,E250022,E350012,E350016,E350018,E350025,E500020,E500025,E700021,E950025,E1200027,E1500032.
Color: Red, Blue, White, Green, Yellow, Grey
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: E02506,E02508,E03406,E03408,E05006,E05008,E05010,E07506,E07508,E07510,E07512,E10006,E10008,E10010,E10012,E15006,E15008,E15010,E15012,E15018,E25008,E25010,E25012,E25018,E40010,E40012,E40018,E60012,E60018,E100012,E100018,E160012,E160018,E250016,E250018,E250022,E350012,E350016,E350018,E350025,E500020,E500025,E700021,E950025,E1200027,E1500032.
Quantity
Material: Pure Copper
Color: Red, Blue, White, Green, Yellow, Grey
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Cord-End Terminals, Nylon-Insulated Terminals, Crimp Terminals, Electrical Connectors, Electrical Terminals, Cord-End Terminals, Nylon-Insulated Terminals, Crimp Terminals, Electrical Connectors, Electrical Terminals
Pure Copper(oxygen-Free)

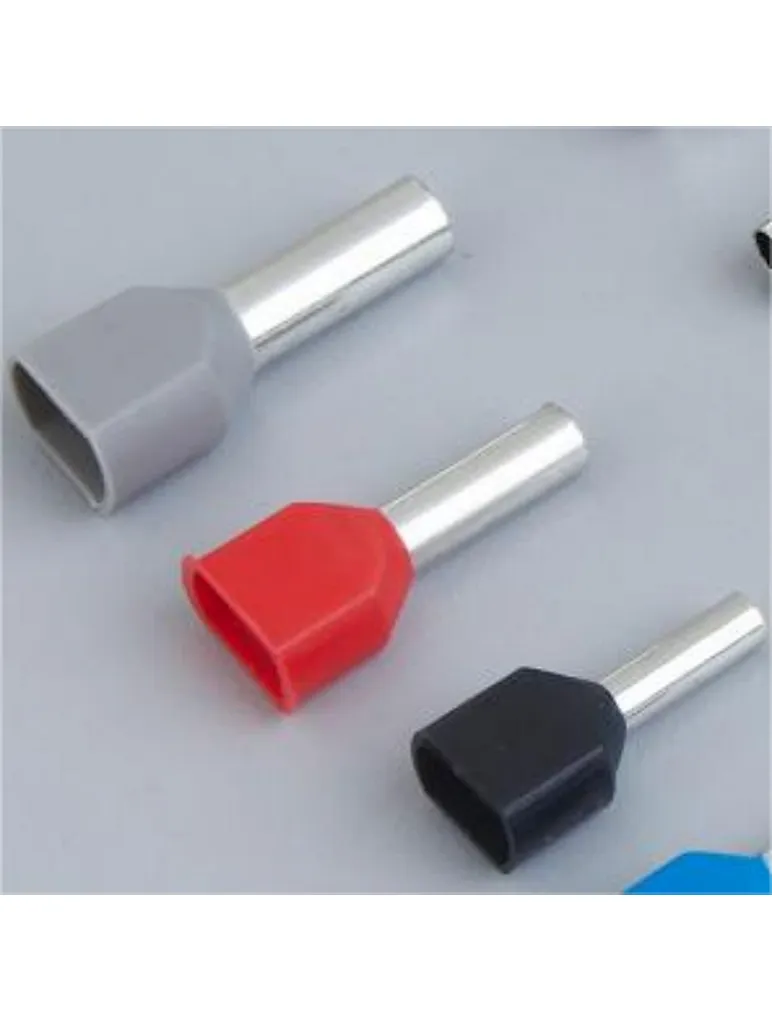

Vinyl Insulated Wire Ferrules
Tin Plated
ITEM NO. : TE0508
Other size
Color: Red, Blue, White, Green, Yellow, Grey
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Cord-End Terminals, Nylon-Insulated Terminals, Crimp Terminals, Electrical Connectors, Electrical Terminals, Cord-End Terminals, Nylon-Insulated Terminals, Crimp Terminals, Electrical Connectors, Electrical Terminals
Pure Copper(oxygen-Free)
Vinyl Insulated Wire Ferrules
Tin Plated
ITEM NO. : TE0508
| Flame Rating | UL94V-2 | |||
| Dimensions | A | mm | 15 | |
| B | mm | 8 | ||
| C | mm | 1.5 | ||
| D | mm | 4.7 | ||
| Color | Orange | |||
| Conductor | m㎡ | 2*0.5 | ||
| AWG | 2*22-20 | |||
| Temp Rating | °C | 105 | ||
| °F | 221 | |||
Other size
| ITEM NO. | Conductor (mm2) | Dimensions (mm) | Color | |||||
| F | L | W | B | фC | фD | |||
| TE0508 | 2x0.5 | 8.0 | 14.5 | 5.0 | 6.5 | 1.5 | 1.8 | WHITE |
| TE7508 | 2x0.75 | 8.0 | 14.7 | 5.5 | 6.7 | 1.8 | 2.1 | BLUE,GRAY |
| TE7510 | 2x0.75 | 10.0 | 16.7 | 5.5 | 6.7 | 1.8 | 2.1 | |
| TE1008 | 2x1.0 | 8.0 | 15.1 | 5.5 | 7.1 | 2.0 | 2.3 | RED |
| TE1010 | 2x1.0 | 10.0 | 17.1 | 5.5 | 7.1 | 2.0 | 2.3 | |
| TE1508 | 2x1.5 | 8.0 | 15.5 | 6.4 | 7.2 | 2.3 | 2.6 | BLACK, YELLOW |
| TE1512 | 2x1.5 | 12.0 | 19.5 | 6.4 | 7.5 | 2.3 | 2.6 | |
| TE2510 | 2x2.5 | 10.0 | 18.5 | 8.0 | 8.5 | 2.9 | 3.3 | GRAY, BLUE |
| TE2513 | 2x2.5 | 13.0 | 21.5 | 8.0 | 8.5 | 2.9 | 3.3 | |
| TE4012 | 2x4.0 | 12.0 | 23.1 | 8.8 | 11.1 | 3.8 | 4.2 | ORANGE, GRAY |
| TE6014 | 2x6.0 | 14.0 | 26.1 | 9.5 | 12.1 | 4.9 | 5.3 | GREEN, YELLOW |
| TE10-14 | 2x10.0 | 14.0 | 26.6 | 12.6 | 12.0 | 6.5 | 6.9 | BROWN, RED |
| TE16-14 | 2x16.0 | 14.0 | 31.3 | 19.0 | 17.3 | 8.3 | 8.7 | MILE, BLUE |
