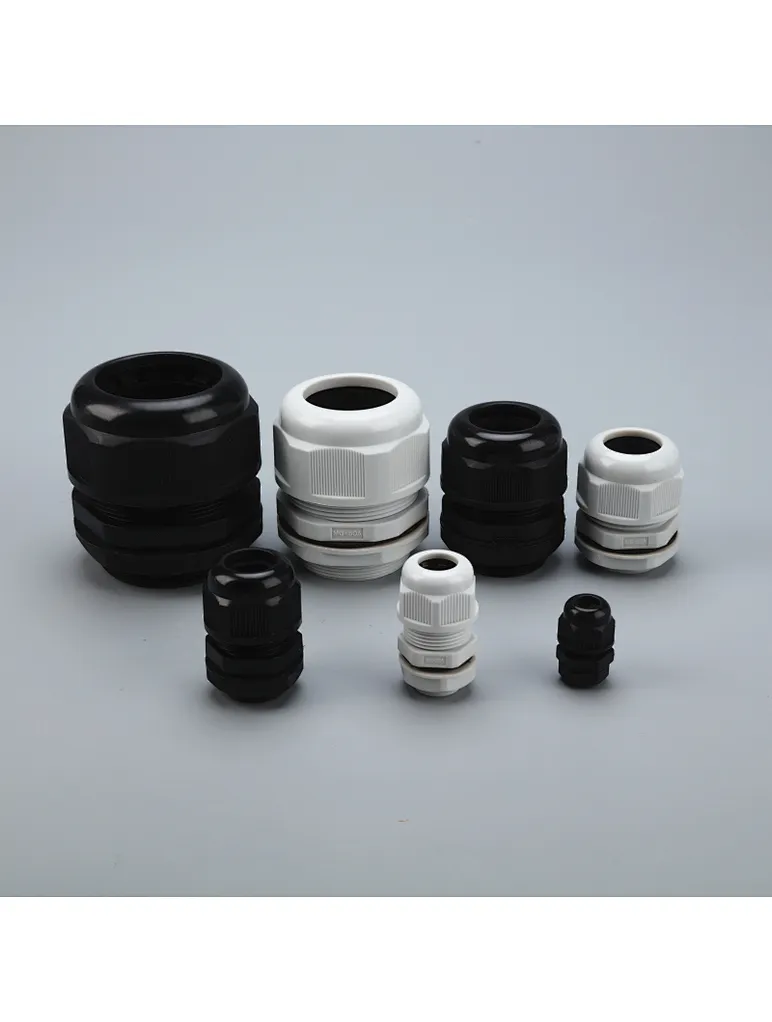

Metric Thread Cable Gland with PA66 material
HS-M22
FOB
2000 packs
1000,000packs / Day
Yueqing,China
10 daysDay
This nylon cable gland features a tight ring made of rubber for secure cable insertion, ideal for metric thread cables with an M25 size.
Quantity
Material: Nylon66,94v-2. Tight ring from rubber
Operating Temperature: -40℃-100℃
Color: Black White
Package:100pcs or Special request Packing available
Brand: WAHSURE
Type: Metric Thread Cable Gland, M Type, Nylon Cable Gland, Metric Thread Cable Gland, M Type, Nylon Cable Gland,Tight ring from rubber
This metric thread cable gland is made of PA66 material, providing high-strength and resistance to chemicals and weather conditions. The tight ring made of rubber ensures a secure and reliable seal for cable insertion, reducing the risk of dust, moisture, and other contaminants entering the cable. With a metric thread size of M25, this nylon gland fits well with a variety of metric cables and wires. Ideal for use in industrial, engineering, telecommunications, and automotive applications. This product solves issues associated with cable interference, dust and moisture infiltration, and cable strain relief. The metric metal cable gland is a reliable and effective solution for your cable management needs.
Other size
Operating Temperature: -40℃-100℃
Color: Black White
Package:100pcs or Special request Packing available
Brand: WAHSURE
Type: Metric Thread Cable Gland, M Type, Nylon Cable Gland, Metric Thread Cable Gland, M Type, Nylon Cable Gland,Tight ring from rubber
This metric thread cable gland is made of PA66 material, providing high-strength and resistance to chemicals and weather conditions. The tight ring made of rubber ensures a secure and reliable seal for cable insertion, reducing the risk of dust, moisture, and other contaminants entering the cable. With a metric thread size of M25, this nylon gland fits well with a variety of metric cables and wires. Ideal for use in industrial, engineering, telecommunications, and automotive applications. This product solves issues associated with cable interference, dust and moisture infiltration, and cable strain relief. The metric metal cable gland is a reliable and effective solution for your cable management needs.
| Operating Temp. | ℃ | -40~100 |
| ℉ | -40~212 | |
| L1 | mm | 10 |
| Inch | 0.39 | |
| L | mm | 30 |
| Inch | 1.18 | |
| L2 | mm | 22 |
| Inch | 0.87 | |
| Spanne Size | mm | 27 |
| Inch | 1.06 | |
| Cable Range | mm | 10-14 |
Other size
| ITEM NO | L1 | Cable Range | L | Spanne Size | L2 |
| MM | MM | MM | MM | MM | |
| HS-M12 | 8 | 3-6.5 | 22 | 16 | 12 |
| HS-M14 | 8 | 4-8 | 26 | 19 | 14 |
| HS-M16 | 8 | 5-10 | 27 | 22 | 16 |
| HS-M18 | 8 | 5-10 | 27 | 22 | 18 |
| HS-M20 | 9 | 6-12 | 28 | 24 | 20 |
| HS-M22 | 10 | 10-14 | 30 | 27 | 22 |
| HS-M24 | 10 | 12-15 | 30 | 27 | 24 |
| HS-M25 | 10 | 13-18 | 35 | 33 | 25 |
| HS-M27 | 10 | 13-18 | 35 | 33 | 27 |
| HS-M30 | 11 | 12-21 | 34 | 35/36 | 30 |
| HS-M32 | 11 | 12-21 | 34 | 36/37 | 32 |
| HS-M36 | 12 | 18-25 | 40 | 41/42 | 36 |
| HS-M40 | 14 | 22-32 | 48 | 52/53 | 40 |
| HS-M50 | 14 | 32-38 | 49 | 60/61 | 50 |
| HS-M63 | 14 | 37-44 | 50 | 67 | 63 |
