Material: PVC, with spring inside
Usage: Peel wire coat, insert the wire in, the tighten.
Feature: Peel wire coat, insert the wire in, the tighten.
UL certificated, 94V-0
Color: Gray, Blue, Orange, Yellow, Red
Brand: WAHSURE

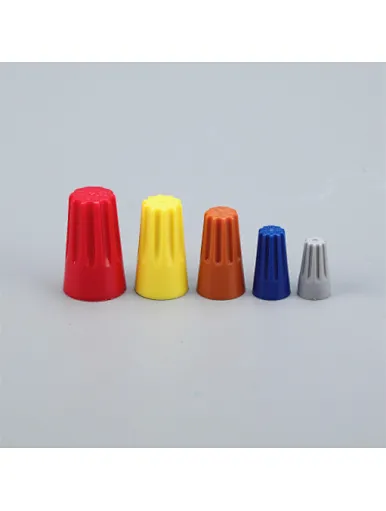

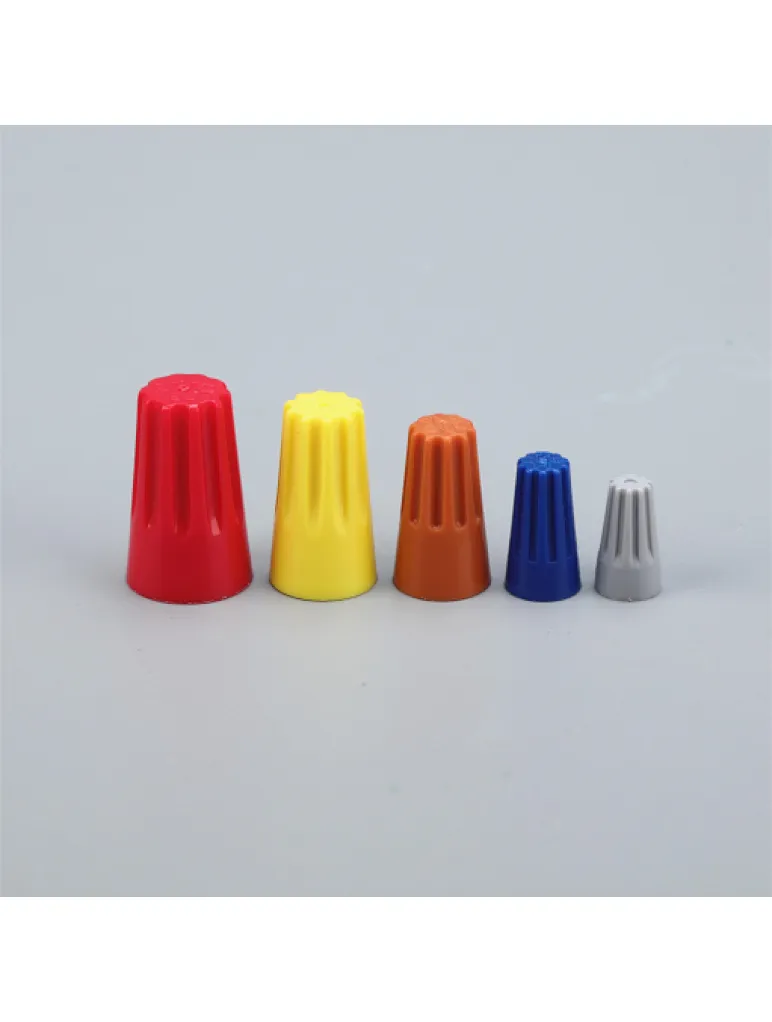

Type: Wire Connectors, Double Wing Screw-on Connectors
Application: Peel wire coat, insert the wire in, then tighten.
ITEM NO. : HS-P2


High	mm	17.6
Width	mm	9.8
Inside Dia.	mm	7.4
Applicable Wires	22-14
Color	Blue

Other size

Specification Data:

ITEM NO	High	Width	Inside Dia.	Applicable Wires	Color
	mm	mm	mm	mm
HS-P1	15.2	8.6	6.7	22-14	Gray
HS-P2	17.6	9.8	7.4	22-14	Blue
HS-P3	22	12	9.9	22-14	Orange
HS-P4	24.5	14	11	22-10	Yellow
HS-P6	26.5	16.4	13	22-8	Red
