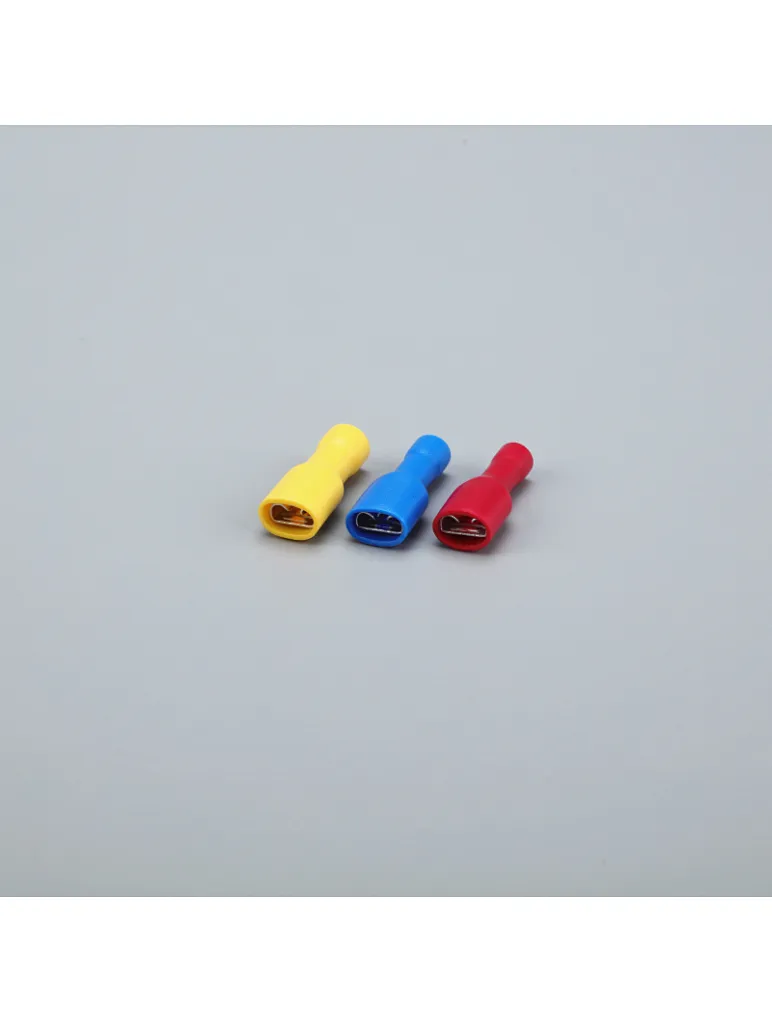

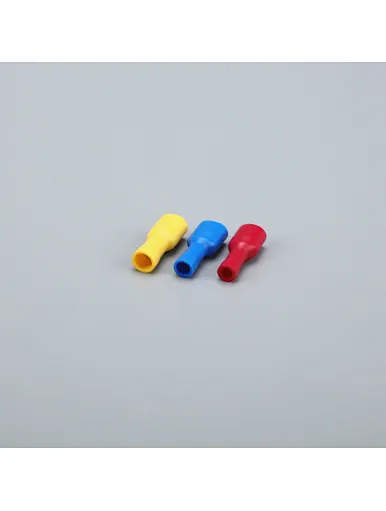

Bullet Female Connector

Bullet Female Connector

Model NO. FRD2-4B

Delivery FOB

minimum order 2000 packs

Supply Ability 1000,000packs / Day

Country of Origin Yueqing,China

Stock Time 10 daysDay

Material: Brass with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: FRD1.25-4B,FRD1.25-5B,FRD2-4B,MFRD2-5B,FRD5.5-4B,FRD5.5-5B

Quantity

Contact Now add to cart

Material: Brass with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Bullet Female Connector,Female Quick Disconnects,Electrical Connectors,Wire Terminals,Crimp Terminals,Bullet Female Connector,Female Quick Disconnects,Electrical Connectors,Wire Terminals,Crimp Terminals

Features:
* Disconnect can be inserted and removed from the male bullet without the use of tools for lower installation cost.
* Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications.
* Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection.
* Fully insulated design provides protection from electrical shorts.

ITEM NO. : FRD2-4B

Dwire Range	AWG/MCM	16-14
	mm2	1.04-2.63
L		25 25
E		13
Dφ		4.3
dφ		3.86
Color		Blue
A		15

Other size

Specification Data

ITEM NO	Dwire Range		L	E	Dφ	dφ	Color	A
	AWG/MCM	mm2
FRD1.25-4B	22-16	0.25-1.65	24.5 24.5	13	3.7	3.86	Red	10
FRD1.25-5B						4.86
FRD2-4B	16-14	1.04-2.63	25 25	13	4.3	3.86	Blue	15
MFRD2-5B						4.86
FRD5.5-4B	12-10	2.63-6.64	25.5 25.5	13	5.4	3.86	Yellow	24
FRD5.5-5B						4.86
