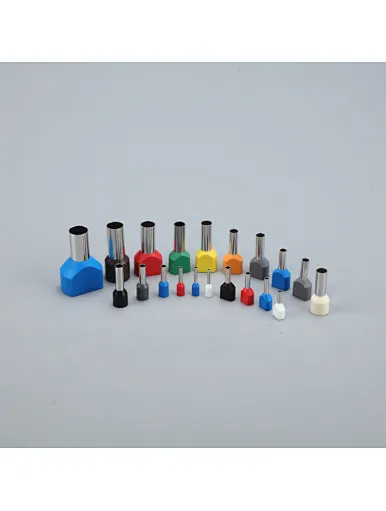

Cord-End Terminals

Cord-End Terminals

Model NO. E03406

Delivery FOB

minimum order 2000 packs

Supply Ability 1000,000packs / Day

Country of Origin Yueqing,China

Stock Time 10 daysDay

Material: Copper
Color: Red, Blue, White, Green, Yellow, Grey
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: E02506,E02508,E03406,E03408,E05006,E05008,E05010,E07506,E07508,E07510,E07512,E10006,E10008,E10010,E10012,E15006,E15008,E15010,E15012,E15018,E25008,E25010,E25012,E25018,E40010,E40012,E40018,E60012,E60018,E100012,E100018,E160012,E160018,E250016,E250018,E250022,E350012,E350016,E350018,E350025,E500020,E500025,E700021,E950025,E1200027,E1500032.

Quantity

Contact Now add to cart

Material: Copper
Color: Red, Blue, White, Green, Yellow, Grey
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Cord-End Terminals, Nylon-Insulated Terminals,Crimp Terminals,Electrical Connectors,Wire Terminals,Cord-End Terminals, Nylon-Insulated Terminals,Crimp Terminals,Electrical Connectors,Wire Terminals

Features:
* Funnel entry for faster insertion and lower installed cost.
* Designed with a seamless barrel to contain loose wire strands for superior terminations.
* Ease of inserting wire into terminals block.
* Suitable for limited space panel applications.
* Multiple pin lengths available for a variety of terminal blocks.

ITEM NO. : E03406


Conductor		mm2	0.34
Dimensions	L	mm	10
	B	mm	6
	φC	mm	1.1
	φD	mm	2.5
Color			Pink
A			5

Other size

Specification Data

ITEM NO	Conductor (mm2)	Dimensions				Color	A
		L	B	φC	φD
E02506	0.25	10	6	1.05	2.5	Light Blue	3
E02508		12	8
E03406	0.34	10	6	1.1	2.5	Pink	5
E03408		12	8
E05006	0.5	12	6	1.3	3.2	Orange	8
E05008		14	8
E05010		16	10
E07506	0.75	12	6	1.5	3.4	White	10
E07508		14	8
E07510		16	10
E07512		18	12
E10006	1	12	6	1.8	3.6	Yellow	12
E10008		14	8
E10010		16	10
E10012		18	12
E15006	1.5	12	6	2	4.1	Red	19
E15008		14	8
E15010		16	10
E15012		18	12
E15018		24	18
E25008	2.5	14	8	2.6	4.8	Blue	27
E25010		16	10
E25012		18	12
E25018		24	18
E40010	4	17	10	3.2	5.5	Grey	37
E40012		20	12
E40018		26	18
E60012	6	20	12	3.9	7	Green	48
E60018		26	18
E100012	10	22	12	4.9	8.4	Ivory	62
E100018		28	18
E160012	16	24	12	6.2	9.6	Green	88
E160018		28	18
E250016	25	28	16	7.7	12	Brown	115
E250018		30	18
E250022		35	22
E350012	35	26	12	8.7	13.5	Beige	160
E350016		30	16
E350018		32	18
E350025		39	25
E500020	50	36	20	10.9	16	Olive	215
E500025		40	25
E700021	70	37	21	14.3	17.2	Yellow	235
E950025	95	44	25	15.5	19.2	Red	255
E1200027	120	48	27	17.6	21.4	Blue	300
E1500032	150	58	32	20.5	25	Yellow	350
