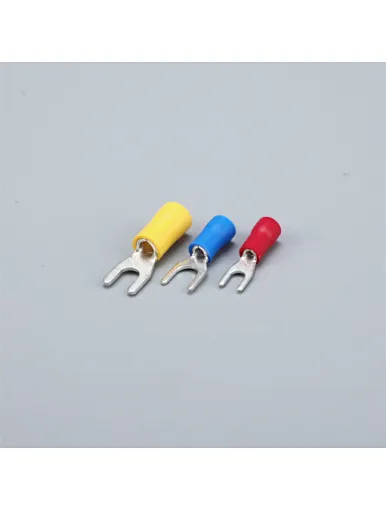

Fork Terminals

Fork Terminals

Model NO. SV1.25-3.5L

Delivery FOB

minimum order 2000 packs

Supply Ability 1000,000packs / Day

Country of Origin Yueqing,China

Stock Time 10 daysDay

Electrolytic Copper
Tin Plated
Easy Entry
P.V.C Insulation
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: SV
1.25-3,1.25-3.5S,1.25-3.5L,1.25-4S,1.25-4M,1.25-4L,1.25-5S,1.25-5L,1.25-6S,1.25-6L,2-3,2-3.5S,2-3.5L,2-4S,2-4M,2-4L,2-5S,2-5L,2-6S,2-6L,3.5-4,3.5-5,3.5-6,5.5-3.5,5.5-4S,5.5-4L,5.5-5,5.5-6S,5.5-6L,5.5-8

Quantity

Contact Now add to cart

Keywords: Fork Terminals, Fork Terminals, Wire Terminals, Wire Terminals, Crimp Terminals, Crimp Terminals, insulated fork terminals, insulated fork terminals
Electrolytic Copper
Tin Plated
Easy Entry
P.V.C Insulation
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Butt Splice,Butt Connector,Electrical Connectors

ITEM NO. : SV1.25-3.5L

Dwire Range	AWG/MCM	22-16
	mm2	0.5~1.5
ΦD	4.3
H	10
American Screw Bolt	#6
F	6.5
B	6.4
Φd2	3.7
L	21.2
Color	Red
Max Current (A)	19

Other size

Specification Data

ITEM NO	Dwire Range		ΦD	H	American Screw Bolt	F	B	Φd2	L	Color	Max Current (A)
	AWG/MCM	mm2
SV1.25-3	22-16	0.5-1.5	4.3	10	#4	6.5	5.7	3.2	21.2	Red	19
SV1.25-3.5S					#6	6.5	5.7	3.7	21.2
SV1.25-3.5L					#6	6.5	6.4	3.7	21.2
SV1.25-4S					#8	6.5	6.4	4.3	21.2
SV1.25-4M					#8	6.5	7.2	4.3	21.2
SV1.25-4L					#8	6.5	8.1	4.3	21.2
SV1.25-5S					#10	6.5	8.1	5.3	21.2
SV1.25-5L					#10	6.5	9.5	5.3	21.2
SV1.25-6S					1/4	6.5	9.5	6.5	21.2
SV1.25-6L					1/4	11	12	6.5	27.2
SV2-3	16-14	1.5-2.5	4.9	10	#4	6.5	5.7	3.2	21.2	Blue	27
SV2-3.5S					#6	6.5	5.7	3.7	21.2
SV2-3.5L					#6	6.5	6	3.7	21.2
SV2-4S					#8	6.5	6.4	4.3	21.2
SV2-4M					#8	6.5	7.2	4.3	21.2
SV2-4L					#8	6.5	8.1	4.3	21.2
SV2-5S					#10	6.5	8.1	5.3	21.2
SV2-5L					#10	6.5	9.5	5.3	21.2
SV2-6S					1/4	6.5	9.5	6.5	21.2
SV2-6L					1/4	11	12	6.5	27.2
SV3.5-4	14-12	2.5-4	6.2	12.5	#8	7	8	4.3	24.8	Yellow	37
SV3.5-5					#10	7	8	5.3	24.8
SV3.5-6					1/4	12.1	12	6.5	28
SV5.5-3.5	12-10	4-6	6.7	12.5	#6	7.5	8.3	3.7	25.2	Yellow	48
SV5.5-4S					#8	7.5	8.3	4.3	25.2
SV5.5-4L					#8	7.5	8.3	4.3	25.2
SV5.5-5					#10	7.5	9	5.3	25.2
SV5.5-6S					1/4	7.5	9	6.5	25.2
SV5.5-6L					1/4	12	12	6.5	31.2
SV5.5-8					5/16	11.5	14	8.4	30





.
