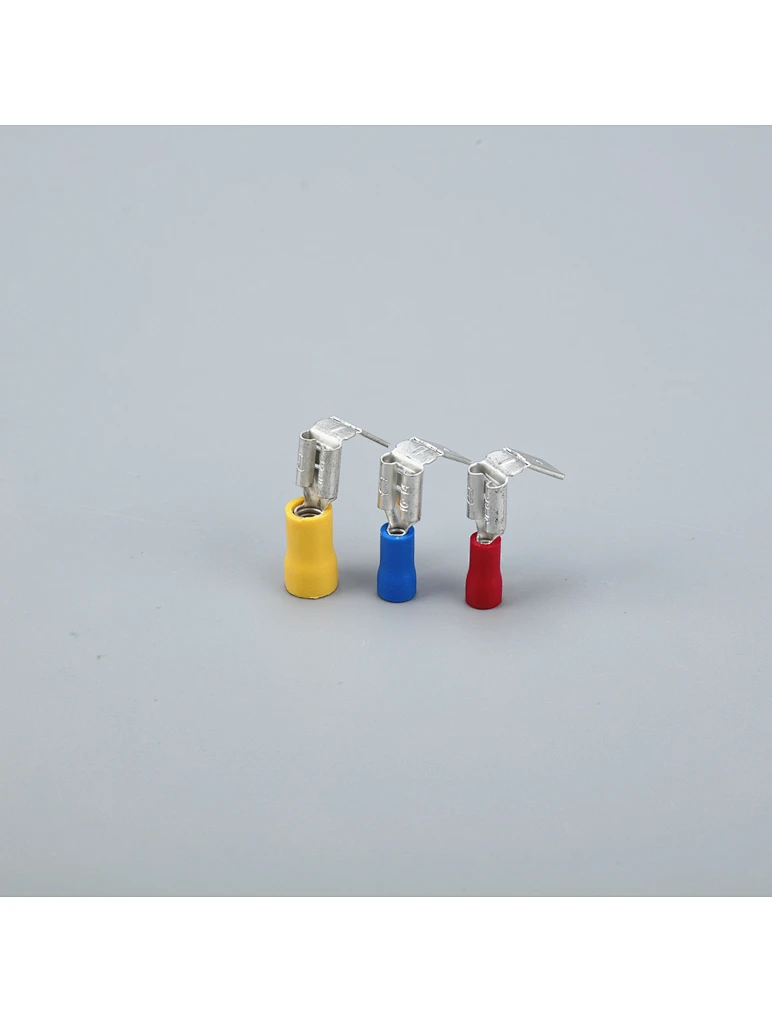

Male and Female Terminal
MF5.5
FOB
2000 packs
1000,000packs / Day
Yueqing,China
10 daysDay
Material: Brass with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: MF1.25, MF2, MF5.5
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: MF1.25, MF2, MF5.5
Quantity
Material: Brass with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Male and Female Terminal, Electrical Connectors, Wire Terminals,Crimp Terminals,Male and Female Terminal, Electrical Connectors, Wire Terminals,Crimp Terminals
Features:
* Combination of female disconnect and male tab allows versatility in points of connection.
* Multiple connection points allow additional circuits to be added to existing equipment without expensive rework.
* Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications.
* The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel.
ITEM NO. : MF5.5
Other size
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Male and Female Terminal, Electrical Connectors, Wire Terminals,Crimp Terminals,Male and Female Terminal, Electrical Connectors, Wire Terminals,Crimp Terminals
Features:
* Combination of female disconnect and male tab allows versatility in points of connection.
* Multiple connection points allow additional circuits to be added to existing equipment without expensive rework.
* Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications.
* The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel.
ITEM NO. : MF5.5
| Dwire Range | AWG/MCM | 12-10 |
| mm2 | 2.63-6.64 | |
| B | 6.8 | |
| B1 | 6.3 | |
| L | 22 | |
| φd1 | 3.5 | |
| φD | 5.5 | |
| H | 13.7 | |
| t | 0.8 | |
| A | 24 | |
Other size
| ITEM NO | Dwire Range | B | B1 | L | φd1 | φD | H | t | A | |
| AWG/MCM | mm2 | |||||||||
| MF1.25 | 18-16 | 0.75-1.25 | 6.8 | 6.3 | 22 | 1.8 | 3.9 | 9.7 | 0.8 | 10 |
| MF2 | 16-14 | 1.25-2.0 | 6.8 | 6.3 | 22 | 2.3 | 4.2 | 9.7 | 0.8 | 15 |
| MF5.5 | 12-10 | 2.63-6.64 | 6.8 | 6.3 | 22 | 3.5 | 5.5 | 13.7 | 0.8 | 24 |
