Non Insulated Cord-End Terminals

Non Insulated Cord-End Terminals

Model NO. EN10012

Delivery FOB

minimum order 2000 packs

Supply Ability 1000,000packs / Day

Country of Origin Yueqing,China

Stock Time 10 daysDay

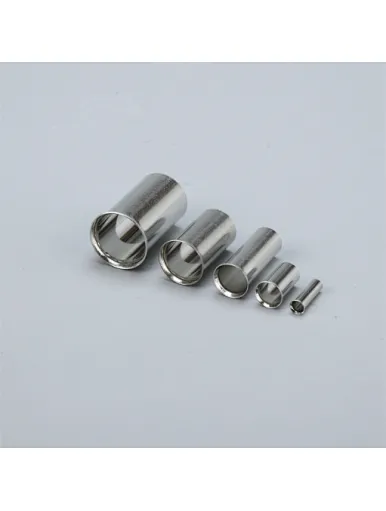

Non Insulated Cord-End Terminals
Copper Tube Terminals
Tin Plated
ITEM: EN
05006,05008,05010,07506,07508,07510,10006,10008,10010,10012,15007,15008,15010,15012,25007,25008,25010,25012,40008,40008,40010,40012,40015,40018,60010,60012,6001560018,160016,250015,250018,250025,350016,350018,350020,350025,500018,500020,500025,700022,700025,950025,950032,100012,100015,100016,160012,160015,1200030,1200032,1200034,1500032,1500038

Quantity

Contact Now add to cart

Keywords: Wahsure Quality Non Insulated Cord-End Terminals, Wahsure Quality Non Insulated Cord-End Terminals, sc cable lugs, sc cable lugs, sc wire lugs, sc wire lugs, sc terminal lugs, sc terminal lugs, sc copper lugs, sc copper lugs, non insulated pin terminals, non insulated pin terminals, non insulated spade terminals, non insulated spade terminals, non insulated terminals, non insulated terminals, non insulated ring terminals, non insulated ring terminals

Non Insulated Cord-End Terminals
Copper Tube Terminals
Tin Plated

ITEM NO. : EN10012

Conductor	(m㎡)	1
Dimensions	L	12
	Φd2	1.8
	Φd1	1.5
	h	0.7
	d	2.5

Other size

Specification Data:

ITEM NO	Conductor (m㎡)	Dimensions
		L	Φd2	Φd1	h	d
EN05006	0.5	6	1.3	1	0.7	2.1
EN05008		8
EN05010		10
EN07506	0.75	6	1.5	1.2	0.7	2.3
EN07508		8
EN07510		10
EN10006	1	6	1.8	1.5	0.7	2.5
EN10008		8
EN10010		10
EN10012		12
EN15007	1.5	7	2	1.7	1	2.8
EN15008		8
EN15010		10
EN15012		12
EN25007	2.5	7	2.6	2.3	1	3.4
EN25008		8
EN25010		10
EN25012		12
EN40008	4	8	3.2	2.8	1	4
EN40008		9
EN40010		10
EN40012		12
EN40015		15
EN40018		18
EN60010	6	10	3.9	3.5	1	4.7
EN60012		12
EN60015		15
EN60018		18				4.8
EN100012	10	12	4.9	4.5	1.2	5.8
EN100015		15
EN100016	16	18	6.2	5.8	1.5	7.5
EN160012		12
EN160015		15
EN160016	25	18	7.7	7.3	1.5	9.5
EN250015		15
EN250016		16
EN250018	35	18	8.7	8.3	1.5	10.5
EN250025		25
EN350016		16
EN350018		18
EN350020	50	20	10.9	10.3	1.5	13
EN350025		25
EN500018		18
EN500020		20
EN500025	70	25	14.3	10.3	1.5	15.3
EN700022		22
EN700025		25
EN950025	95	25	15.5	13.5	2	16.6
EN950032		32
EN1200030	120	30	17.6	14.7	2	18.6
EN1200032		32
EN1200034		34
EN1500032	150	32	20.5	19.5	2	21.5
EN1500038		38
