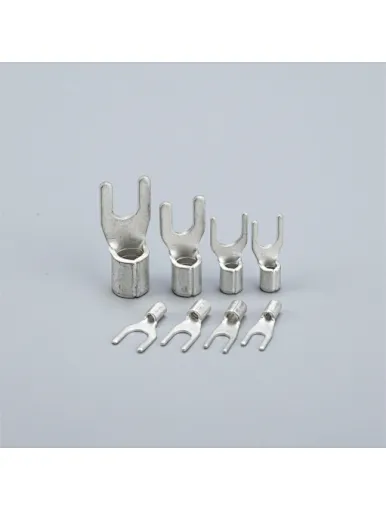

Non Insulated Fork Terminal

Non Insulated Fork Terminal

Model NO. SNB2-3

Delivery FOB

minimum order 2000 packs

Supply Ability 1000,000packs / Day

Country of Origin Yueqing,China

Stock Time 10 daysDay

Fork Terminals
Electrolytic Copper
Soldered barrel
Tin Plated
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: SNB
1.25-3,1.25-3.5S,1.25-3.5L,1.25-4S,1.25-4M,1.25-4L,1.25-5S,1.25-5L,1.25-6S,1.25-6L,2-3,2-3.5S,2-3.5L,2-4S,2-4M,2-4L,2-5S,2-5L,2-6S,2-6L,3.5-4,3.5-5,3.5-6,5.5-3.5,5.5-4S,5.5-4L,5.5-5,5.5-6S,5.5-6L,5.5-8

Quantity

Contact Now add to cart

Keywords: Non Insulated Fork Terminal,  Non Insulated Fork Terminal, fork insulated terminal, fork insulated terminal, non insulated ring terminal, non insulated ring terminal, non insulated spade terminal, non insulated spade terminal

Fork Terminals
Electrolytic Copper
Soldered barrel
Tin Plated
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Butt Splice,Butt Connector,Electrical Connectors

ITEM NO. : SNB2-3

Dwire Range	AWG/MCM	16-14
	mm2	1.5~2.5
ΦD	4.1
Φd1	2.3
E	4.8
American Screw Bolt	#4
F	6.5
B	5.7
Φd2	3.2
L	16
Max Current (A)	27

Other size

Specification Data

ITEM NO	Dwire Range		ΦD	Φd1	E	American Screw Bolt	F	B	Φd2	L	Max Current (A)
	AWG/MCM	mm2
SNB1.25-3	22-16	0.5-1.5	3.4	1.7	4.8	#4	6.5	5.7	3.2	16	19
SNB1.25-3.5S						#6	6.5	5.7	3.7	16
SNB1.25-3.5L						#6	6.5	6.4	3.7	16
SNB1.25-4S						#8	6.5	6.4	4.3	16
SNB1.25-4M						#8	6.5	7.2	4.3	16
SNB1.25-4L						#8	6.5	8.1	4.3	16
SNB1.25-5S						#10	6.5	8.1	5.3	16
SNB1.25-5L						#10	6.5	9.5	5.3	16
SNB1.25-6S						1/4	6.5	9.5	6.5	16
SNB1.25-6L						1/4	11	12	6.5	22
SNB2-3	16-14	1.5-2.5	4.1	2.3	4.8	#4	6.5	5.7	3.2	16	27
SNB2-3.5S						#6	6.5	5.7	3.7	16
SNB2-3.5L						#6	6.5	6.4	3.7	16
SNB2-4S						#8	6.5	6.4	4.3	16
SNB2-4M						#8	6.5	7.2	4.3	16
SNB2-4L						#8	6.5	8.1	4.3	16
SNB2-5S						#10	6.5	8.1	5.3	16
SNB2-5L						#10	6.5	9.5	5.3	16
SNB2-6S						1/4	6.5	9.5	6.5	16
SNB2-6L						1/4	11	12	6.5	22
SNB3.5-4	14-12	2.5-4	5	3	6	#8	7	8	4.3	18.3	37
SNB3.5-5						#10	7	8	5.3	18.3
SNB3.5-6						1/4	12.1	12	6.5	21.5
SNB5.5-3.5	12-10	4-6	5.6	3.4	16.8	#6	7.5	8.3	3.7	19.5	48
SNB5.5-4S						#8	7.5	8.3	4.3	19.5
SNB5.5-4L						#8	7.5	9	4.3	19.5
SNB5.5-5						#10	7.5	9	5.3	19.5
SNB5.5-6S						1/4	7.5	9	6.5	19.5
SNB5.5-6L						1/4	12	12	6.5	12
SNB5.5-8						5/16	11.5	14	8.4	14



​​​​​​
