Non Insulated Pin Terminals

Non Insulated Pin Terminals

Model NO. PTN2-10

Delivery FOB

minimum order 2000 packs

Supply Ability 1000,000packs / Day

Country of Origin Yueqing,China

Stock Time 10 daysDay

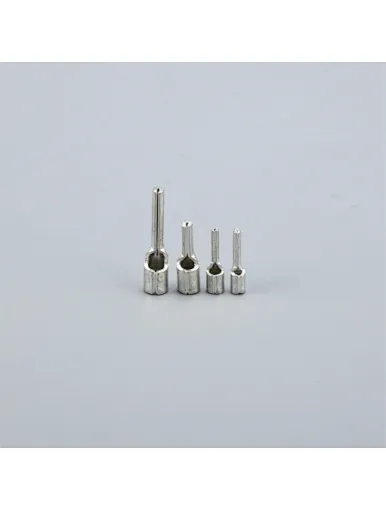

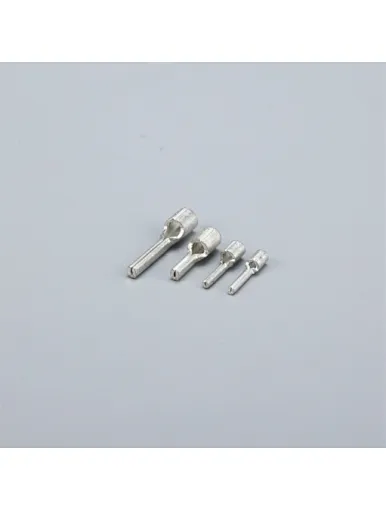

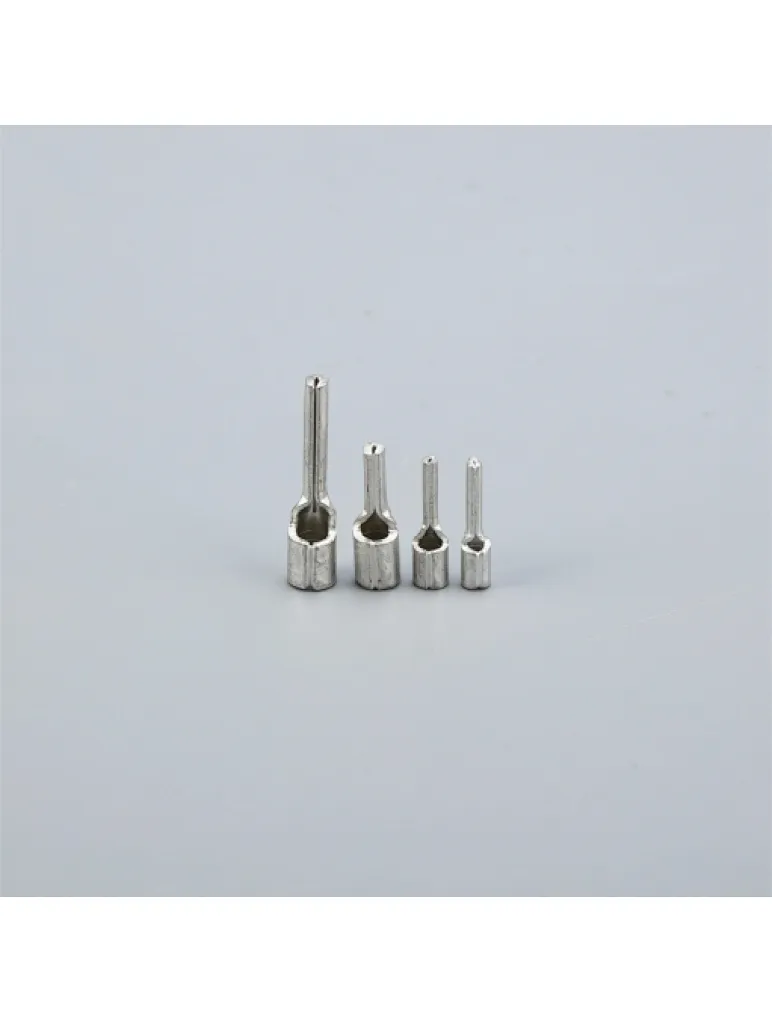

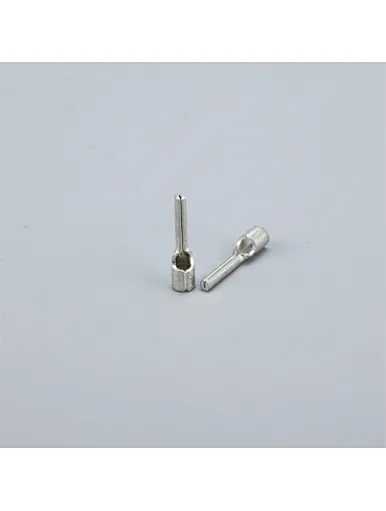

Non-Insulated
Pin Terminals
Electrolytic Copper
Soldered Barrel
Tin Plated
Brand: WAHSURE
ITEM: PTN
1.25, 1.25-7,1.25-9,1.25-10,1.25-17,2,2-7,2-9,2-10,2-17,5.5`

Quantity

Contact Now add to cart

Non-Insulated
Pin Terminals
Electrolytic Copper
Soldered Barrel
Tin Plated
Brand: WAHSURE
Type: Pin Terminal, wire crimping pin terminals, Crimp Terminals, Electrical Terminals


ITEM NO. : PTN2-10


Dwire Range	AWG/MCM	16-14
	mm2	1.04-2.63
Fφ		2
L		14.8
φD		4
H		4.8
Max. A		27

Other size

Specification Data

ITEM NO	Dwire Range		Fφ	L	Dφ	H	Max. A
	AWG/MCM	mm2
PTN1.25	22-16	0.25-1.65	2	16.3	3.4	4.5	19
PTN1.25-7				11.5
PTN1.25-9				13.5
PTN1.25-10				14.5
PTN1.25-17				21.5
PTN2	16-14	1.04-2.63	2	16.6	4	4.8	27
PTN2-7				11.8
PTN2-9				13.8
PTN2-10				14.8
PTN2-17				21.8
PTN5.5	12-10	2.63-6.64	2.7	20.3	5.6	6.8	48
