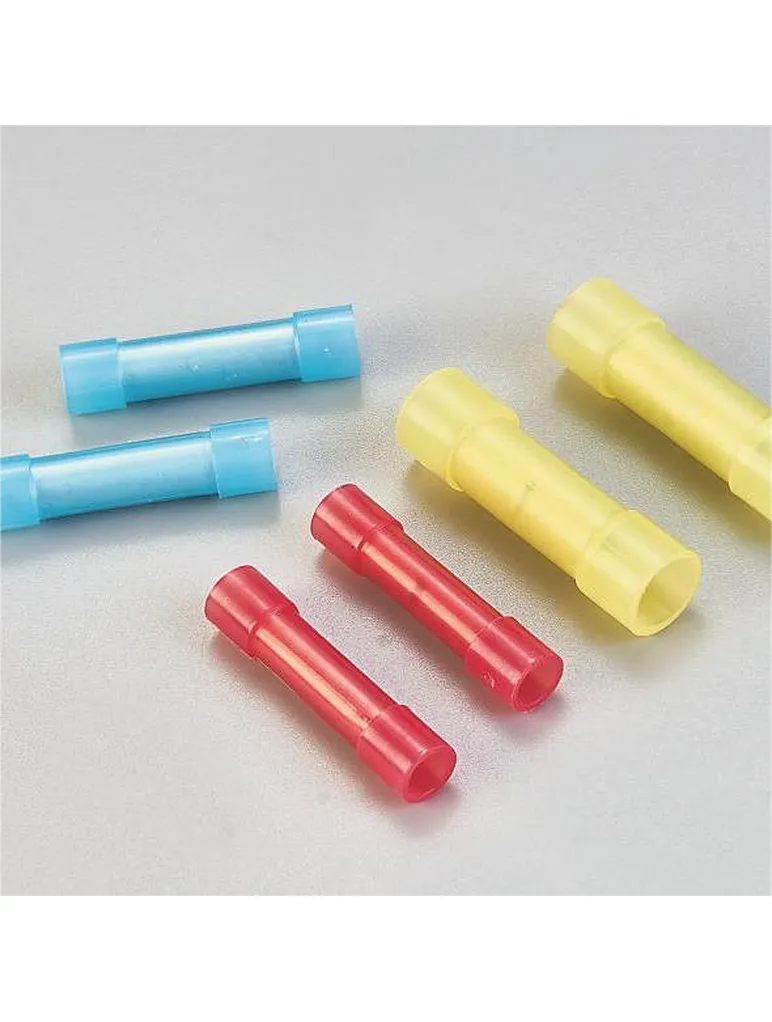

Nylon Fully Insulated Butt Splice
BV5.5N
FOB
2000 packs
1000,000packs / Day
Yueqing,China
10 daysDay
Electrolytic Copper Tube
Tin Plated
Nylon Insulation
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: BV
1.25N,2N,5.5N
Tin Plated
Nylon Insulation
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: BV
1.25N,2N,5.5N
Quantity
Electrolytic Copper Tube
Tin Plated
Nylon Insulation
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Pin Terminal, wire crimping pin terminals, Crimp Terminals, Electrical Terminals
ITEM NO. : BV5.5N
Other size
Tin Plated
Nylon Insulation
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Pin Terminal, wire crimping pin terminals, Crimp Terminals, Electrical Terminals
ITEM NO. : BV5.5N
| Dwire Range | AWG/MCM | 12-10 |
| mm2 | 2.63-6.64 | |
| L | 25.7 | |
| ΦD | 15 | |
| H | 4 | |
| Φd | 2.4 | |
| Color | Yellow | |
| Max. Current (A) | 48 | |
Other size
| ITEM NO | Dwire Range | L | ΦD | H | Φd | Color | Max. Current (A) | |
| AWG/MCM | mm2 | |||||||
| BV1.25N | 22-16 | 0.25-1.65 | 23.7 | 15 | 4 | 2.4 | Red | 19 |
| BV2N | 16-14 | 1.04-2.63 | 23.7 | 15 | 4.5 | Blue | 27 | |
| BV5.5N | 12-10 | 2.63-6.64 | 25.7 | 15 | 4 | Yellow | 48 | |
