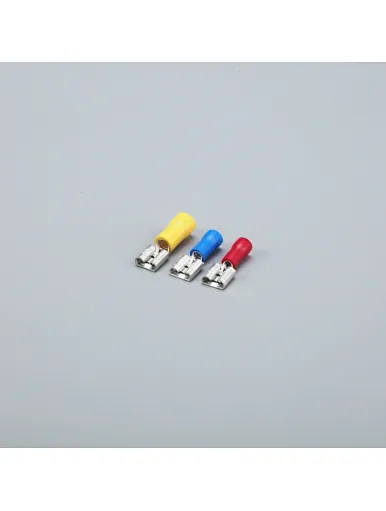

Pre-Insulated Female Terminal
RF187(5)
FOB
2000 packs
1000,000packs / Day
Yueqing,China
10 daysDay
Material: Brass with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: RF110(5), RF110(8), RF187(5), RF187(8), RF250, BF110(5), BF110(8), BF187(5), BF187(8), BF250, YF110(5), YF110(8), YF187(5), YF187(8), YF250
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: RF110(5), RF110(8), RF187(5), RF187(8), RF250, BF110(5), BF110(8), BF187(5), BF187(8), BF250, YF110(5), YF110(8), YF187(5), YF187(8), YF250
Quantity
Material: Brass with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Pre-Insulated Female Terminal，Electrical Connectors, Wire End Terminals,Wire Terminals,Crimp Terminals,Pre-Insulated Female Terminal，Electrical Connectors, Wire End Terminals,Wire Terminals,Crimp Terminals
Features:
* Disconnect can be inserted and removed from the male tab without the use of tools for lower installation cost.
* Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications.
* Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection.
* The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel.
ITEM NO. : RF187(5)
Other size
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Pre-Insulated Female Terminal，Electrical Connectors, Wire End Terminals,Wire Terminals,Crimp Terminals,Pre-Insulated Female Terminal，Electrical Connectors, Wire End Terminals,Wire Terminals,Crimp Terminals
Features:
* Disconnect can be inserted and removed from the male tab without the use of tools for lower installation cost.
* Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications.
* Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection.
* The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel.
ITEM NO. : RF187(5)
| Dwire Range | AWG/MCM | 22-16 |
| mm2 | 0.25-1.65 | |
| B | 5 | |
| L | 19 | |
| Dφ | 3.5 | |
| H | 9.7 | |
| Color | Red | |
| A | 10 | |
Other size
| ITEM NO | Dwire Range | B | L | Dφ | H | Color | A | |
| AWG/MCM | mm2 | |||||||
| RF110(5) | 22-16 | 0.25-1.65 | 3 | 18.5 | 3.5 | 9.7 | Red | 10 |
| RF110(8) | ||||||||
| RF187(5) | 5 | 19 | ||||||
| RF187(8) | ||||||||
| RF250 | 6.8 | 20.5 | ||||||
| BF110(5) | 16-14 | 1.04-2.63 | 3 | 18.5 | 4 | 9.7 | Blue | 15 |
| BF110(8) | ||||||||
| BF187(5) | 5 | 19 | ||||||
| BF187(8) | ||||||||
| BF250 | 6.8 | 20.5 | ||||||
| YF110(5) | 12-10 | 2.63-6.64 | 3 | 22.5 | 5.4 | 13.7 | Yellow | 24 |
| YF110(8) | ||||||||
| YF187(5) | 5 | 23 | ||||||
| YF187(8) | ||||||||
| YF250 | 6.8 | 24.5 | ||||||
