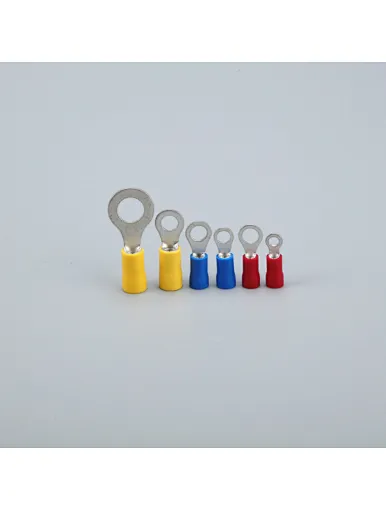

Ring Terminal

Ring Terminal

Model NO. RV1.25-4S

Delivery FOB

minimum order 2000 packs

Supply Ability 1000,000packs / Day

Country of Origin Yueqing,China

Stock Time 10 daysDay

Material: Electrolytic Copper Tube with tin plated
Color: Red, Blue, Yellow, Black
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: RV1.25-3S, RV1.25-3.5S, RV1.25-3.5M, RV1.25-3.5L, RV1.25-4S, RV1.25-4L, RV1.25-5, RV1.25-6, RV1.25-8, RV1.25-10, RV2-3, RV2-3.5M, RV2-4, RV2-4M, RV2-5, RV2-6, RV2-8, RV2-10, RV3.5-4, RV3.5-5, RV3.5-6, RV5.5-3, RV5.5-4, RV5.5-5, RV5.5-6, RV5.5-6, RV5.5-10

Quantity

Contact Now add to cart

Material: Electrolytic Copper Tube with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Ring Terminal, Crimping Terminals Copper Tinned- Ring​​​​​​​, Electrical Connector​​​​​​​s, Wire Terminals​​​​​​​, Crimp Terminals​​​​​​​, Ring Terminal​​​​​​​, Crimping Terminals Copper Tinned- Ring​​​​​​​, Electrical Connector​​​​​​​s, Wire Terminals​​​​​​​, Crimp Terminals

Features:
* Ring tongue design assures a secure connection in high vibration applications.
* Brazed seam protects terminal barrel from splitting during the crimping process.
* The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel.

ITEM NO. : RV1.25-4S

Dwire Range	AWG/MCM	22-16
	mm2	0.5-1.5
φD		4.3
H		10
F		6.3
B		6.6
φd2		4.3
L		20.1
Color		Red
A		19

Other size

Specification Data

ITEM NO	Dwire Range		φD	H	F	B	φd2	L	Color	A
	AWG/MCM	mm2
RV1.25-3S	22-16	0.5-1.5	4.3	10	4.3	5.7	3.2	17.8	Red	19
RV1.25-3.5S					4.3	5.7	3.7	17.8
RV1.25-3.5M					6.3	6.6	3.7	20.1
RV1.25-3.5L					7	8	3.7	21.5
RV1.25-4S					6.3	6.6	4.3	20.1
RV1.25-4L					7	8	4.3	21.5
RV1.25-5					7	8	5.3	21.5
RV1.25-6					11.1	11.6	6.5	27.5
RV1.25-8					11.1	11.6	8.4	27.5
RV1.25-10					13.9	13.6	10.5	31.6
RV2-3	16-14	1.5-2.5	4.9	10	4.3	6.6	3.2	17.8	Blue	27
RV2-3.5S					4.3	6.6	3.7	17.8
RV2-3.5M					7	6.6	3.7	21
RV2-3.5L					7.8	8.5	3.7	22.5
RV2-4S					7	6.6	4.3	21
RV2-4L					7.8	8.5	4.3	22.5
RV2-5S					7.8	8.5	5.3	22.5
RV2-5L					7.3	9.5	5.3	22.5
RV2-6					11	12	6.5	27.6
RV2-8					11	12	8.4	27.6
RV2-10					13.9	13.6	10.5	30.2
RV3.5-4	14-12	2.5-4	6.3	12.5	7.7	8	4.3	24.5	Black	37
RV3.5-5S					7.7	8	5.3	24.5
RV3.5-5L					7.7	12	5.3	28
RV3.5-6					7.7	12	6.5	28
RV5.5-3.5	12-10	4-6	6.7	12.5	5.9	7.2	3.7	21.4	Yellow	48
RV5.5-4S					5.9	7.2	4.3	21.4
RV5.5-4L					8.3	9.5	4.3	25.5
RV5.5-5					8.3	9.5	5.3	25.5
RV5.5-6					13	12	6.5	31.5
RV5.5-8					13.7	15	8.4	33.7
RV5.5-10					13.7	15	10.5	33.7
RV5.5-12					16	19.2	13	38.1
