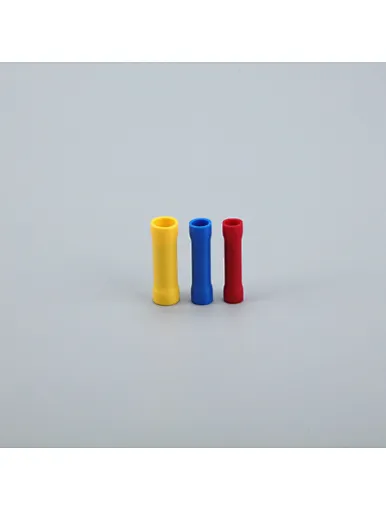

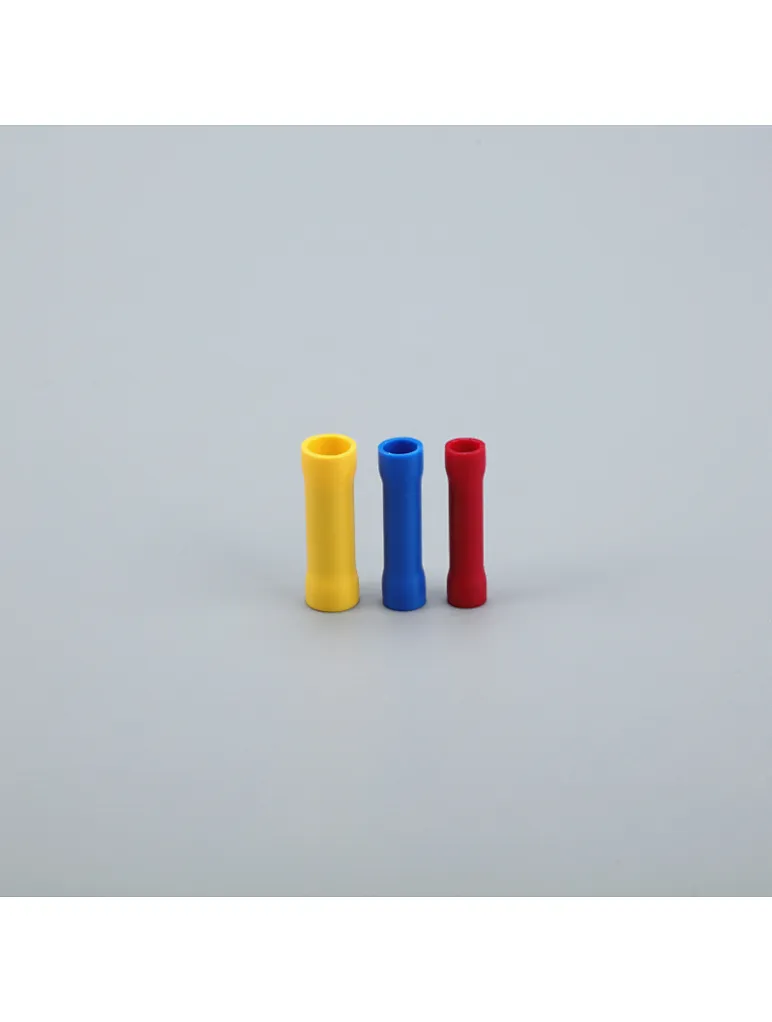

PVC or Nylon plastic Butt Splice
BV1.25
FOB
2000 packs
1000,000packs / Day
Yueqing,China
10 daysDay
Material: Electrolytic Copper Tube with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: BV1.25,BV2,BV5.5
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: BV1.25,BV2,BV5.5
Quantity
Band IT offers variety of stainless steel cable ties. Band IT cable ties provide fast, consistent and reliable clamping tension. Used in many industries and applications, such as automotive, marine, aerospace, cable bundling and identification.
Available Types: Band IT Stainless steel Cable ties, Self-locking ties, Multi lock cable ties, Ultra lock cable ties, PVC or Nylon Cable ties.
Available brands: Band IT, Surelock, F-Tech
Material: Electrolytic Copper Tube with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Butt Splice, Electrical Connectors, Wire Terminals, Crimp Terminals, Butt Splice, Electrical Connectors, Wire Terminals, Crimp Terminals
Features:
* Expanded wire entry designed to accommodate wires with a larger insulation thickness.
* Designed to splice two solid or stranded wires together to repair or lengthen wires.
* Brazed seam protects the terminal barrel from splitting during the crimping process.
* Internal wire stop assures proper length of insertion into the terminal barrel.
* Fully insulated design provides protection from electrical shorts.
ITEM NO. : BV1.25
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type: Butt Splice, Electrical Connectors, Wire Terminals, Crimp Terminals, Butt Splice, Electrical Connectors, Wire Terminals, Crimp Terminals
Features:
* Expanded wire entry designed to accommodate wires with a larger insulation thickness.
* Designed to splice two solid or stranded wires together to repair or lengthen wires.
* Brazed seam protects the terminal barrel from splitting during the crimping process.
* Internal wire stop assures proper length of insertion into the terminal barrel.
* Fully insulated design provides protection from electrical shorts.
ITEM NO. : BV1.25
| Dwire Range | AWG/MCM | 22-16 |
| mm2 | 0.25-1.65 | |
| L | 23.7 | |
| E | 15 | |
| Dφ | 4 | |
| dφ | 2.4 | |
| Color | Red | |
| A | 19 | |
Another size
| ITEM NO | Dwire Range | L | E | Dφ | dφ | Color | A | |
| AWG/MCM | mm2 | |||||||
| BV1.25 | 22-16 | 0.25-1.65 | 23.7 | 15 | 4 | 2.4 | Red | 19 |
| BV2 | 16-14 | 1.04-2.63 | 23.7 | 15 | 4.5 | Blue | 27 | |
| BV5.5 | 12-10 | 2.63-6.64 | 23.7 | 15 | 4 | Yellow | 48 | |
