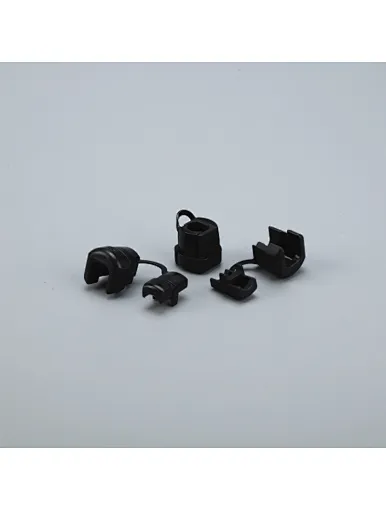

Suitable for all kinds of household appliances power cord fixed cable buckle relief bushing
2P-4
FOB
2000 packs
1000,000packs / Day
Yueqing,China
10 daysDay
Material: Nylon66
Operating Temperature: - 40°C to 85°C
Color: Black
Package:100pcs,500pcs,1000pcs
Brand: WAHSURE
ITEM: 2P-4, 3P-4,3W-1,4N-4,4K-4,5N-4,5P-4,6N-4,6P-4,6N3-4,6P3-4,7N-2,7P-2,8P-2,9R-1
Operating Temperature: - 40°C to 85°C
Color: Black
Package:100pcs,500pcs,1000pcs
Brand: WAHSURE
ITEM: 2P-4, 3P-4,3W-1,4N-4,4K-4,5N-4,5P-4,6N-4,6P-4,6N3-4,6P3-4,7N-2,7P-2,8P-2,9R-1
Quantity
Material: Nylon66
Operating Temperature: -40℃-85℃
Color: Black,
Package:100pcs or Special request Packing available
Brand: WAHSURE
Type: Strain Relief Bushing,Cord Bushings,Round Type Strain Relief Bushings,Strain Relief Bushes,Strain Relief Bushing,Cord Bushings,Round Type Strain Relief Bushings,Strain Relief Bushes
Features:
*Apply to all kinds of home appliances and lightings etc,which used to fix and protect the outsiede electrical wires.
*Be used for electronic products, electronic equipments and wire outlet, to fix the cables and protect power cable from scratched by frame, avoid short-circuits.
ITEM NO. : 2P-4
Other size
Operating Temperature: -40℃-85℃
Color: Black,
Package:100pcs or Special request Packing available
Brand: WAHSURE
Type: Strain Relief Bushing,Cord Bushings,Round Type Strain Relief Bushings,Strain Relief Bushes,Strain Relief Bushing,Cord Bushings,Round Type Strain Relief Bushings,Strain Relief Bushes
Features:
*Apply to all kinds of home appliances and lightings etc,which used to fix and protect the outsiede electrical wires.
*Be used for electronic products, electronic equipments and wire outlet, to fix the cables and protect power cable from scratched by frame, avoid short-circuits.
ITEM NO. : 2P-4
| Operating Temp. | ℃ | -40~85 | |
| ℉ | -40~185 | ||
| Cross Secrion Shape | Flat | ||
| UL wires Accommodated | SPT-1 | ||
| Approx. Wire Size | mm | 3*5.6 | |
| Mounting Holes | A | mm | 9.5 |
| B | mm | 8.7 | |
| Max. Thickness F | mm | 1.6 | |
| Length D | mm | 10.3 | |
Other size
| ITEM NO | Cross Secrion Shape | UL wires Accommodated | Approx. Wire Size | Mounting Holes | Max. Thickness F | Length D | |
| mm | Amm | Bmm | mm | mm | |||
| 2P-4 | Flat | SPT-1 | 3*5.6 | 9.5 | 8.7 | 1.6 | 10.3 |
| 3P-4 | SPT-1 | 3*5.6 | 11 | 9.9 | 1.6 | 10.3 | |
| 3W-1 | SPT-1 | 3*5.6 | 11 | 9.9 | 2.5 | 10.3 | |
| 4N-4 | SPT-2 | 3.71/ 3.8*7.6 | 12.7-13.1 | 11.8 | 1.6 | 10.3 | |
| 4K-4 | SPT-2 | 3.71/ 3.8*7.6 | 12.7-13.1 | 11.8 | 2.5 | 10.3 | |
| 5N-4 | Round | SVISVT | 6.4φ-7.4φ | 12.7-13.1 | 11.5 | 1.6 | 11 |
| 5P-4 | SVISVT | 6.4φ-7.4φ | 12.7-13.1 | 11.5 | 2.5 | 11 | |
| 6N-4 | SJT3C#18 | 7.6φ | 15.9 | 14 | 1.6 | 14.8 | |
| 6P-4 | SJT3C#18 | 7.6φ | 15.9 | 14 | 3.2 | 14.8 | |
| 6N3-4 | SJT3C#16 | 8.2φ-9.2φ | 15.9 | 14 | 1.6 | 14.8 | |
| 6P3-4 | SJT3C#16 | 8.2φ-9.2φ | 15.9 | 14 | 3.2 | 14.8 | |
| 7N-2 | SJT3C#14 | 9.2φ-10.5φ 11φ | 19 19.8 | 16.8 | 1.6 | 19 | |
| 7P-2 | SJT3C#14 | 9.2φ-10.5φ 11φ | 19 19.8 | 16.8 | 3.2 | 19 | |
| 8P-2 | SJT3C#12 | 12φ-15.2φ | 22.2 | 21.3 | 3.2 | 20.8 | |
| 9R-1 | #1822-36PCS | 11φ-15φ | 19 | 19 | 1.6 | 17.5 | |
